A ball valve is a type of valve used to control the flow of a liquid or gas through a pipe. It gets its name from the hollow, perforated ball inside the valve that pivots to control the flow through it. The valve is operated by turning a handle or lever attached to the stem, which rotates the ball inside the valve. When the handle is perpendicular to the pipe, the valve is closed; when parallel, it's open.

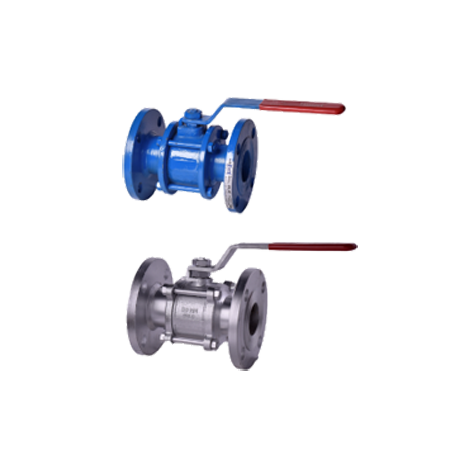

FLANGED END BALL VALVE
| Size Range | 1/2“ (15 mm) To 8” (200 mm) |
|---|---|
| Body Material | C.I. / C.S. |
| Body Construction | Three Piece |
| Internal Ball | SS 202 Ball (Full Bore) |
| Seat | Teflon |
| End Connection | Flanged End |
| Flange Drilling | Class 150#, Table D-E |
| Operation | Lever Operated |
